Last update 12th.July,2005

　

オーナー
 owner		 Jason84NA2T
在住地
location		 Michigan, U.S.A
年式
year		 1984
グレード

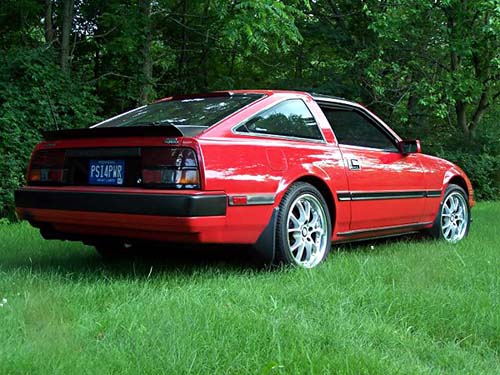

model		 300ZX 2+2 5MT GL  Turbo Conversion
仕様
 modification points		 Engine/Turbo/Drivetrain:

Stock 85 300ZX non-turbo shortblock (9:1 compression) with low miles, turbocharged.
T3/T04S(AKA 60-1) with stage 3 turbine: stock t3 .63A/R exhaust housing bored for stage 3 turbine,
 stock center section, .70A/R T04S compressor.
Greddy Profec B Spec 2 electonic boost controller.
Cartech fuel management unit.
Innovate! Technology LM-1 Wideband O2 sensor
Walbro 255lph fuel pump.
Nissan 300ZX TT (Z32) fuel filter.
Cretified Muffler 3" turbo back exhaust. "Custom" using dyno-max race magnum "mufflers",
 ported out O2 sensor elbow.
K&N 9" cone filter.
Flow-through compressor inlet/engine mount.
Unorthodox Racing underdrive pulley.
Bell Intercoolers intercooler assembly with my own custom made 2.25" piping, silicone couplers and
  t-bolt clamps.
APEX'i blow off valve
Heads home-ported and finished using cross-buffs
Performance 3 angle valve job with valves backcut.
JWT high performance single valve springs.
Schneider Racing Cams re-ground camshfts. Specs.
"Morgan's" adjustable cam gears.
Hayden performance engine oil cooler.
Electric fan conversion (from a honda accord, I think).
Nissan OEM headgaskets w/ asbestos (the very best, proven to hold 30PSI boost).
NOS universal "wet" single fogger kit.
ACT 6-Puck race clutch.
1988 300ZX Turbo transmission AKA "indestructable"
OBX short throw shifter for 240SX fitted to 88 Turbo Transmission.
Custom driveshaft made for 2+2 with new greasable joints.
R200 clutch type limited-slip differential.
88T half shafts.

Suspension/Brakes:

88T suspension swap.
Prothane complete poly suspension bushing set.
88-89 tension rods.
Koni Rallysport anti-roll bars (1 1/8" front and fully adjustable rear).
88SS (NisMo) springs, stiffest available drop-in springs; stock ride height.
Tokico Illumina 5-way adjustable dampers.
Prothane poly rear crossmember bushings.
Cusco Type OS front strut bar.
Custom "solid" differential mount.
Alignment settings: Rear 1/4" toe in, Front 1/8" toe out.
Z32 Quad 30mm Piston calipers (front). 88T vented rear rotors.
PDM racing front Z32 caliper conversion lines.
Goodridge stainless steel braided brake hoses, synthetic hi-temp fluid.
Axxis Metalmaster brake pads.

Cosmetics/Tires/Wheels/Sound:

Lo-Tek a-pillar 3 gauge pod with boost, oil temp, AFR (from wideband). Autometer guages.
Momo steering wheel and shift knob.
Complete grey to black interior swap.
87-89 Turbo fiberglass rear spoiler.
87-89 3rd brakelight.
85T rear center panel "300ZX Turbo".
85T (factory smoked) taillights.
84-85 Turbo front spoiler.
84-85 Turbo hood scoop.
Headlights down while on "modification".
Installed all appropriate stock 1984 300ZX Turbo badging.
Zenetti Valeo 17x8 e20 wheels with 245-40-17 Yokohama AVS intermediates.
88 Turbo 16X7 e30 wheels with 225-50-16 Kumho Ecsta MX's
85 Turbo 15x6.5 e30 wheels with 225-50-15 Kumho Victoracer V700 race tires.
Custom made rear false floor/cargo cover hides subwoofer, amp and nitrous bottle from view.
Ashtray cut out to hold Greddy Profec B Spec 2 electronic boost controller.
Pioneer DEH-P7200 Head unit.
JBL Loud & Clear 120W bridged amp running a single 10" Fosgate Punch Z subwoofer in a small custom
box I made. Polk Audio EX3 6.5" speakers with swivel tweeters. Front speaker grilles removed and holes
 enlarged, aftermarket grilles installed.
コメント
 comment		 http://www.redz31.com is my website
